ARCHER AXE LOG SPLITTERS
30 Ton Log Splitter
30 Ton Log Splitter
30 Ton Log Splitter
RRP $2,899
Maximum splitting force - 30 Tons *1
Engine - 7hp, 212cc RATO R210 *2
Maximum log length - 25” (635mm)
Cycle time, down & back - 12.2 seconds *1
Cylinder - 4-1/2” dia x 24” stroke
Pump, two stage - 15 GPM
Wedge, heat treated steel - 9” high
Beam - 9” foot plate
Hydraulic capacity - 22 litres max *3
Valve - Auto return with adjustable detent
Wheels - D.O.T. approved 16” O.D road tyres
Coupler - 2” ball with safety chains
Warranty - 1 Year, limited
*1 Tonnage and cycle times may vary dependent on mechanical and environmental conditions.
*2 As rated by engine manufacturer
*3 Minimum operational capacity is 19 litres of hydraulic fluid

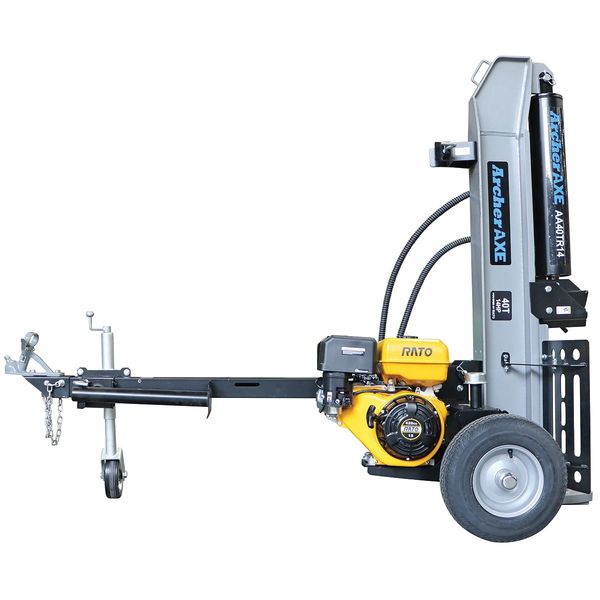

40 Ton Log Splitter
30 Ton Log Splitter
30 Ton Log Splitter
RRP $3,399
Maximum splitting force - 40 Tons *1
Engine - 15hp, 420cc RATO R420 *2
Maximum log length - 25” (635mm)
Cycle time, down & back - 15.8 seconds *1
Cylinder - 5” dia x 24” stroke
Pump, two stage - 19 GPM
Wedge, heat treated steel - 9” high
Beam - 9” foot plate
Hydraulic capacity - 22 litres max.3
Valve - Auto return with adjustable detent
Wheels - D.O.T. approved 16” O.D road tyres
Coupler - 2” ball with safety chains
Warranty - 1 Year, limited
*1 Tonnage and cycle times may vary dependent on mechanical and environmental conditions.
*2 As rated by engine manufacturer
*3 Minimum operational capacity is 19 litres of hydraulic fluid
